Toyota Landcruiser 105 Series (1999-2022) Rear Bar The Cruiser Company

Need to carry that spare tyre? Need to carry that Jerry? Or just need protection from those woopsies. The cruiser company rear bar is what you need!

Please note:
- These are a made to order item with a lead time - these are not stocked. The lead time on these items is 20-22 weeks weeks from order to shipment date, shipping time is then added onto this timeline.
- As these bars are shipped from VIC, shipping is still charged for pickups in Perth.
Please contact us before ordering from Perth, usually $420 to us.
- The photos may only depict one part of the selection and not all, if in doubt please email us.

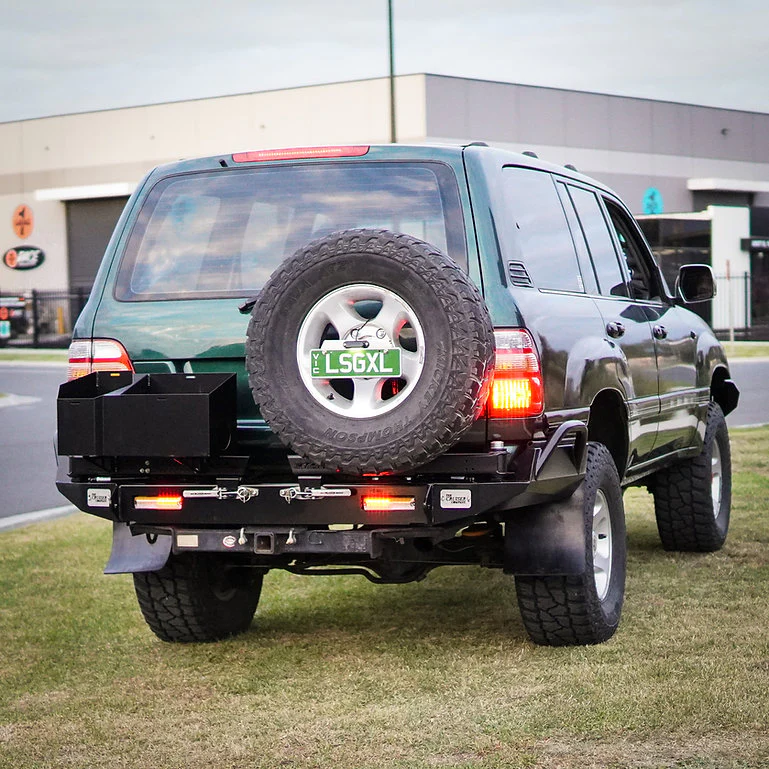

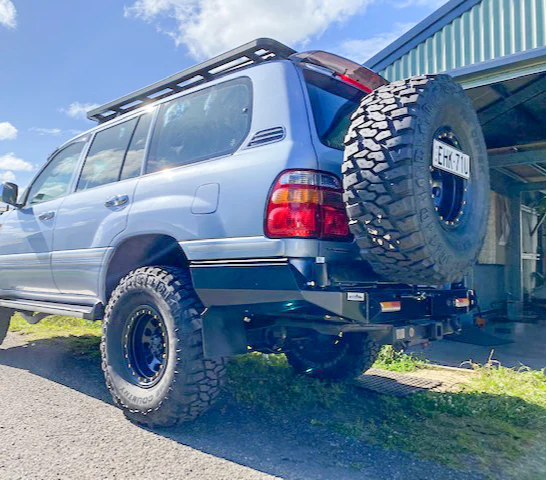

Bars in photos include the following options:

Quarter hoops (GREEN 105, GOLD 105, SILVER 105)
Jerry cylinder holder (GREEN 105)
Twin tyre carriers and a bolt on jerry holder (SILVER)
Inline twin jerry holder (GOLD 105)

Built locally in Pakenham (VIC) the Australian made bar, uses only Australian steel - 5mm thick - so you know you can trust the quality for the highest level of strength and durability. Manufacturered with the latest laser cutting techniques before being folded with a press brake.

The bars are mounted direct to the chassis, no body mounts here, this ensures the strength during an impact is maximized. The bars specifically mount on either side of the chassis, with the steel plates fixing the bar to the vehicle with high tensile bolts.

Mounting plates are also added to the bar, which span the whole distance from teh front of the bars wings to the chassis to provide side impact rigidity.

Features:
- Laser cut
- CNC folded
- Machined carrier stubs (suit regular trailer bearings)
- Carrier stubs braced back to the chassis
- 5mm steel construction
- Gas struts on carriers
- Side wings braced to the chassis
- Sandblasted, primed, powder coated satin black
- Twin jerry can holder (selectable)
- Configurable carrier system with future upgradability
- ADR approved Roadvision BR200 series led tail lights

Specifications

Included in package:

BAR BASE
DRIVERS SIDE ARM W/TYRE CARRIER UPRIGHT
PASSENGER SIDE ARM W/TWIN JERRY CAN HOLDER
ADR APPROVED LED TAIL LIGHTS
CORNER REVERSE LIGHTS
ALL MOUNTING HARDWARE
FITTING INSTRUCTIONS

Will work with Toyota tow bar and Hayman Reese tow bar.

Bars in photos include the following options:

Quarter hoops (SANDY TROOPY)
Jerry cylinder holder (COLOUR CODED SANDY TROOPY)
Twin tyre carriers and a bolt on jerry holder (SANDY TROOPY, WHITE TROOPY)
**If you would like a configuration that is not listed, please contact us.**

Configurable Carriers:

Included with the purchase of the 76 series rear bar are two carrier arms. Each carrier (both left and right) shares common symmetrical bases which allow for different uprights and accessories to be bolted on. This will allow the owner of the bar to easily choose their carrier setup and modify it with ease down the track.

Included with the bar is a single tyre carrier upright and a passenger side jerry can holder. The jerry holder can be unbolted from the passenger side carrier base to allow for another tyre carrier upright to be added (should you wish for a twin tyre carrier setup). Likewise, the tyre carrier upright can be unbolted from the driver’s side carrier base to allow for different carriers to be installed.

Additional bolt on carrier accessories will be sold separately.

When configured with twin tyre carrier uprights, the 76 series rear bar will be able to hold two 35-inch spare tyres.

UPDATES:

With our full time design team, we are always finding ways to improve the rear bars to make for a better product. In the latest updates (13/10/22), we have included:

RoadVision corner reverse lights with all orders.
Updated Roadvision taillights with thicker cabling.
Thicker latch base.
Latch base change to stainless steel.
Increased tyre carrier height for clearance.
Thicker stubs.
Chage to metal strut hardware.
Thicker bump stops.
Improved internal wing gusseting.
Increased adjustability in tyre head for different rim offsets.
Added adjustment inboard and outboard on the tyre carrier for different tyre sizes.

SHIPPING POLICY:

Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout.

We can provide door to door delivery options for an extra fee, Please contact our sales team on 1300 773 494 or sales@ppdperformance.com.au within 24hrs of the order being placed if you would like us to quote this option for you.

As these bars are shipped from VIC, shipping is still charged for pickups in Perth.
Please contact us before ordering from Perth, usually $420 to us.
